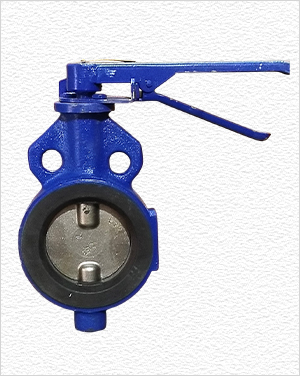

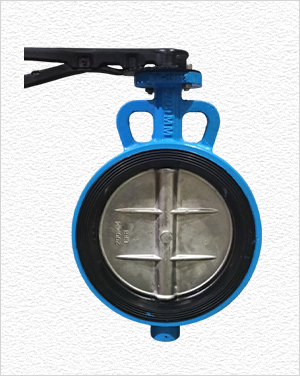

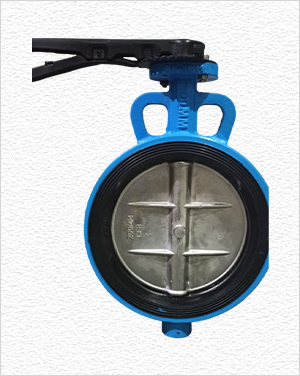

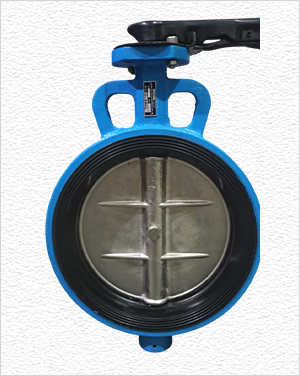

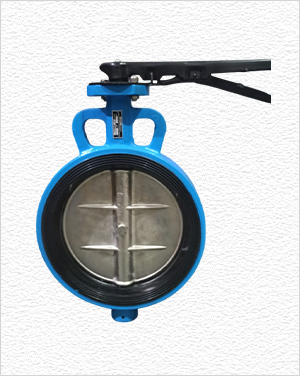

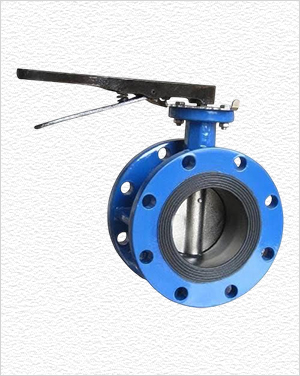

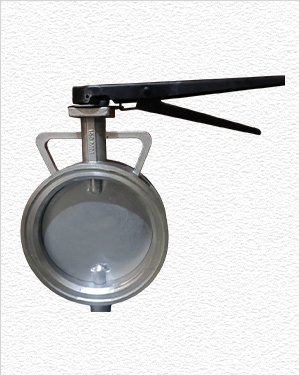

Butterfly Valve
CAPRO VALVES is a well known name in the industry for supplying superb quality and long lasting BUTTERFLY VALVES. A butterfly valve is a type of flow control valve that is widely used in various industrial applications to regulate or isolate the flow of liquids, gases, or slurries in a pipeline. The valve is named for the shape of its disc, which resembles a butterfly's wings.
Key Components OF OUR PRODUCT :
Disc : The disc is the primary component that blocks or allows flow. When the valve is closed, the disc is positioned perpendicular to the flow path, blocking it. When the valve is open, the disc is rotated to allow the flow through the valve.
Stem : The stem connects the disc to the actuator, allowing the disc to rotate. The stem can be manual or actuated (electric, pneumatic, or hydraulic).
Actuator : In automated systems, an actuator (manual or powered) rotates the disc, controlling the valve's opening and closing.
Our Butterfly valve works following given Working Principle :
A butterfly valve works by rotating its disc 90 degrees to control the flow of the medium. When the valve is fully open, the disc is parallel to the pipe, allowing full flow. When the valve is closed, the disc is positioned perpendicular to the pipe, blocking the flow.
These are Applications :
Water and wastewater treatment plants
HVAC systems
Oil and gas pipelines
Chemical plants
Food processing (for controlling the flow of liquids)
Advantages :
Compact design : Butterfly valves are smaller and lighter than other types, making them ideal for space-constrained applications.
Quick operation : The disc can be opened or closed very quickly with a 90-degree turn.
Cost-effective : Generally more affordable compared to other valve types.
Low pressure drop : Due to the thin, disc design, they have a relatively low resistance to flow.
Specifications :
TYPE : Wafer Type, Lug Type
SIZE : 50 mm to 1000 mm
PRESSURE RATINGS : PN 10/PN 16
BODY MATERIAL : C.I./ WCB/CF8/CF8M
OPERATION : By lever, Gear, Motor,Actuator
Seat Material : Nitrile,EPDM, Viton,PTFE
