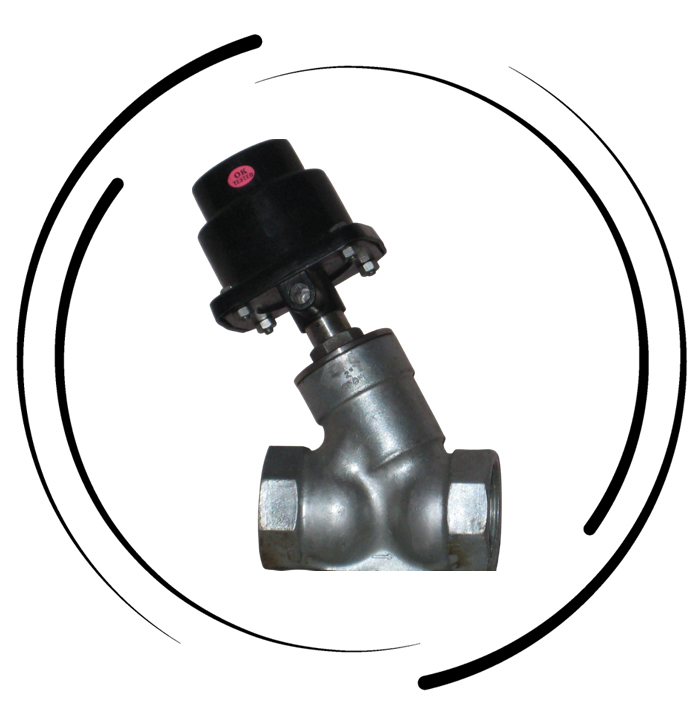

Y Type Pneumatic Valve
A Y-type pneumatic valve is a specific type of valve used in pneumatic systems to control the flow of compressed air or gas. Its name is derived from its characteristic "Y" shape, which is typically seen in the valve body design. Here’s an overview of its features, function, and use:
Key Features OF Y TYPE PNEUMATIC VALVE CAPRO VALVES manufacture :
Flow Control : The Y-type valve is designed to regulate the direction and flow of air or gas within a pneumatic system.
Shape : The valve’s body often features a Y-shaped configuration, where the flow enters from one end and branches out into two or more outlets.
Functionality : It can function as a 3-way valve or a
2-way valve, depending on the system design.
3-way valve : Allows for three different paths for air or gas, typically used in systems with actuators, cylinders, or control mechanisms requiring directional flow.
2-way valve : Controls the flow between two paths, usually to turn air flow on or off.
Applications : Used in automation, material handling, machinery, and various industrial applications where precise control of air flow is necessary.
Applications :
Actuator Control : In pneumatic systems, it helps in controlling the actuation of cylinders, valves, and other devices by directing the flow of air to specific parts of the system.
Flow Diversion : Can be used in systems where the flow needs to be diverted to different sections based on system requirements.
Switching Applications : Useful in systems that need to alternate between different pathways for air, such as in directional control or switching operations.
Advantages :
Space-Efficient : The Y-shape design allows for more compact integration in systems.
Flexibility : These valves can be used in various control applications, making them versatile for different pneumatic setups.
Ease of Control : Allows for precise control of airflow, making them ideal for automation systems.
Specifications :
SIZE : 1/2”BSP to 2.1/2” BSP (F)
BODY MATERIAL : SS 304/ SS 316 /CS
TRIM MATERIAL : SS 304/SS 316
SEATING : Teflon. Viton. Buna-N
PACKING : Teflon, VEE Seals
END CONNECTIONS : Screwed end, Flanged End 150 #
ACTION : Normally close, Normally open
ACTUATOR : Pneumatic cylinder piston operated ( spring return type)Air pressure for actuator to operate the valve 4-6 bar
FLUID APPLIED : Water, Air,Gas, Oil, Steam etc
